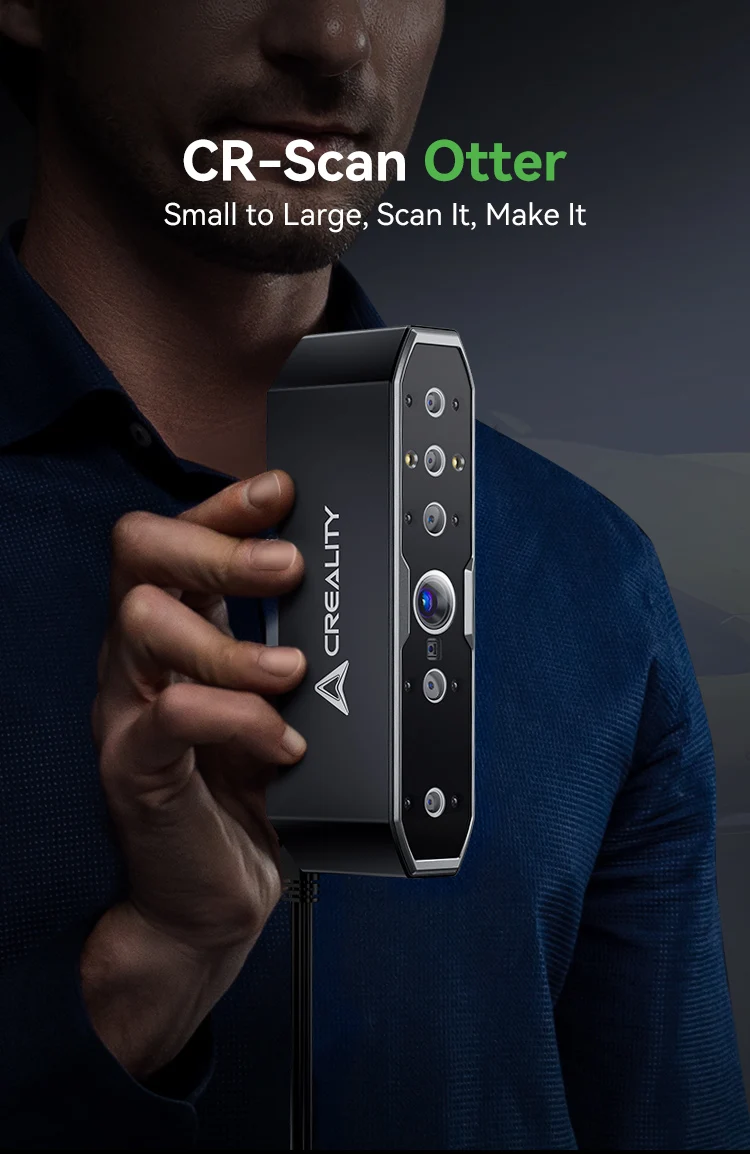

Creality CR-Scan Otter Handheld 3D Scanner 0.02mm Accuracy High-precision All-in-one 3D Scanner
Creality CR-Scan Otter Handheld 3D Scanner 0.02mm Accuracy High-precision All-in-one 3D Scanner
Regular price
$1,100.00 SGD
Regular price
Sale price
$1,100.00 SGD
Unit price
/
per
SPECIFICATIONS
Brand Name: CREALITY 3D
Item Type: 3D Scanner
CR-Scanner Otter
CR-Scan Otter is a high-precision, handheld, all-in-one 3D scanner compatible with scanning small, medium, and large objects.With a maximum accuracy of 0.02mm. From small screws to human bodies and large automotive components (10~2,000 mm³), it can effortlessly scan objects of various sizes. The ability to adapt to objects of various sizes is achieved by its innovative four-eye stereoscopic vision

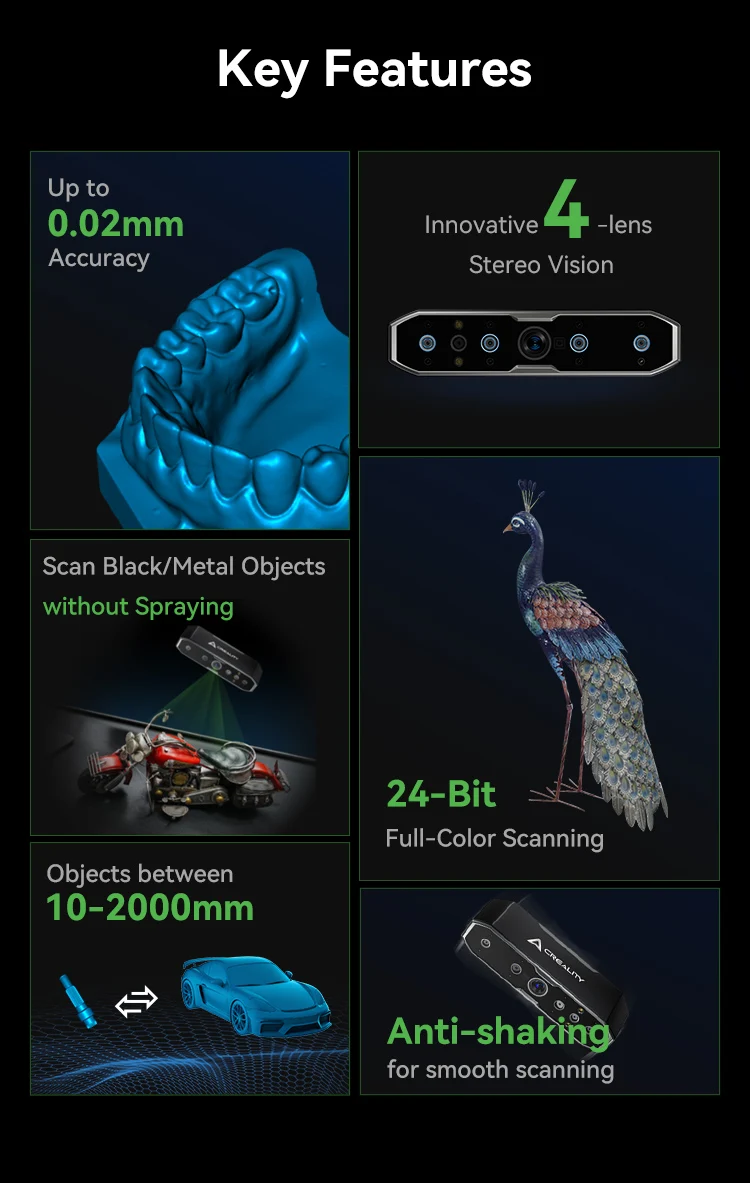

Features:
Up to 0.02mm Accuracy
Innovative Four-lens Stereo Vision
Anti-shaking for smooth scanning
24-Bit Full-Color Scanning
Objects between 10-2000mm
Scan Black/Metal Objects without Spraying

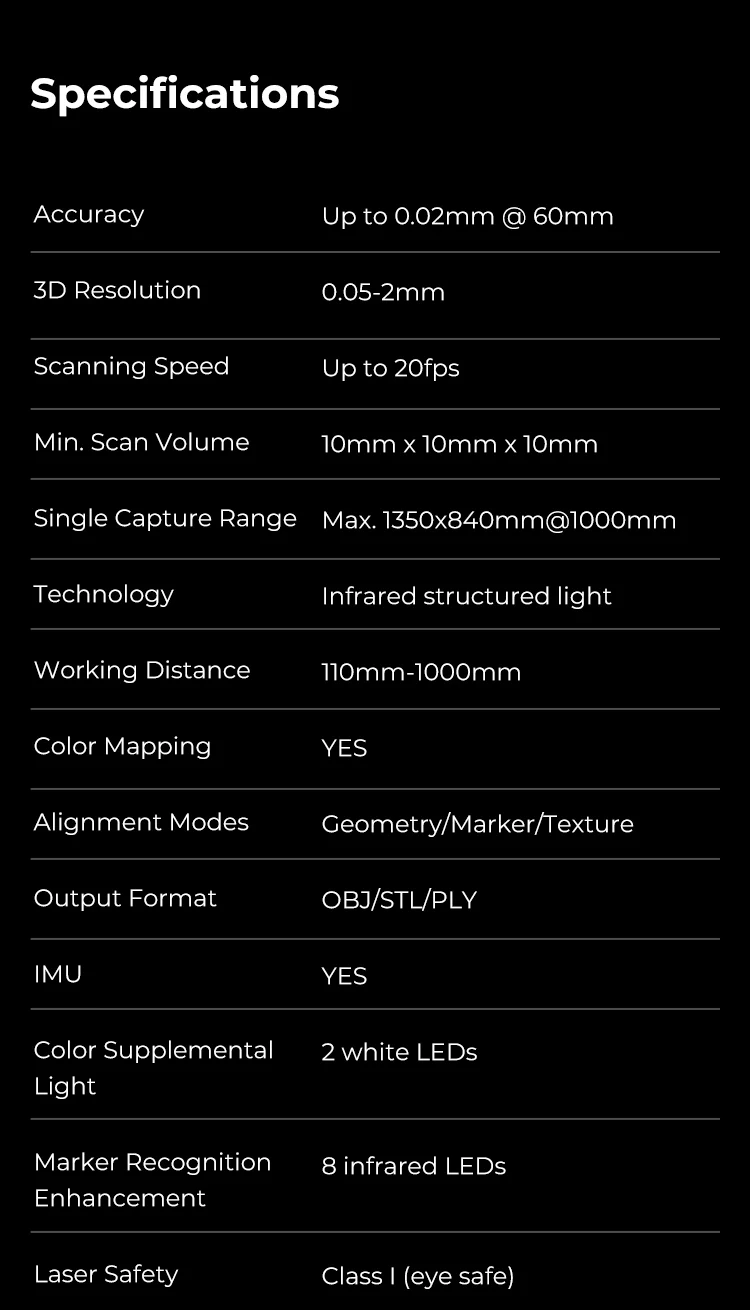

Specifications
Accuracy: Up to 0.02mm@60mm
3D Resolution: 0.05-2mm
Scanning Speed: Up to 20fps
Min.Scan Volume: 10mmx10mmx10mm
Single Capture Range: Max.1350x840mm@1000mm
Technology: Infrared structured light
Working Distance: 110mm-1000mm
Color Mapping: YES
Alignment Modes: Geometry/Marker/Texture
Output Format: OBJ/STL/PLY
IMU: YES
Color Supplemental Light: 2 white LEDS
Marker Recognition Enhancement: 8 infrared LEDs
Laser Safety: Class I(eye safe)

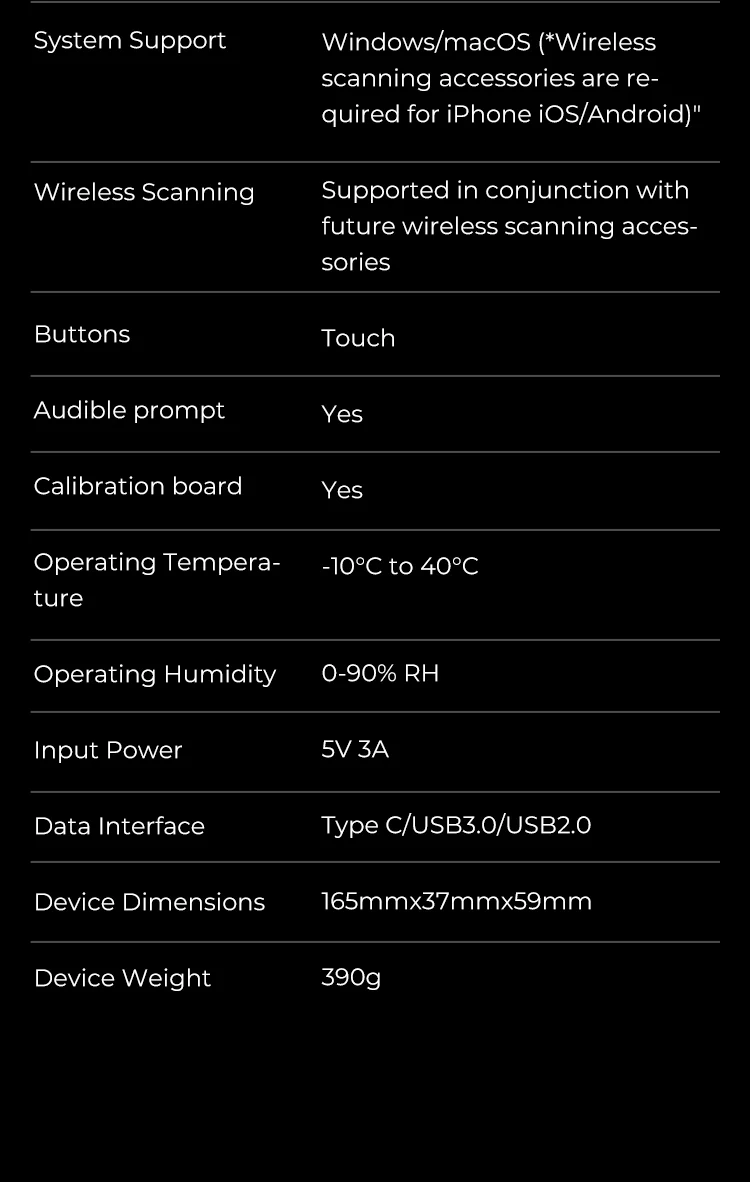

System Support: Windows/macOS(*Wireless scanning accessories are re-quired for iPhone iOS/Android))"
Wireless Scanning: Supported in conjunction with future wireless scanning acces-sories
Buttons: Touch
Audible prompt: Yes
Calibration board: Yes
Operating Temperature: -10°C to 40°℃
Operating Humidity: 0-90%RH
Input Power: 5V3A
Data Interface: Type C/USB 3.0/USB 2.0
Device Dimensions: 165mmx37mmx59mm
Device Weight: 390g

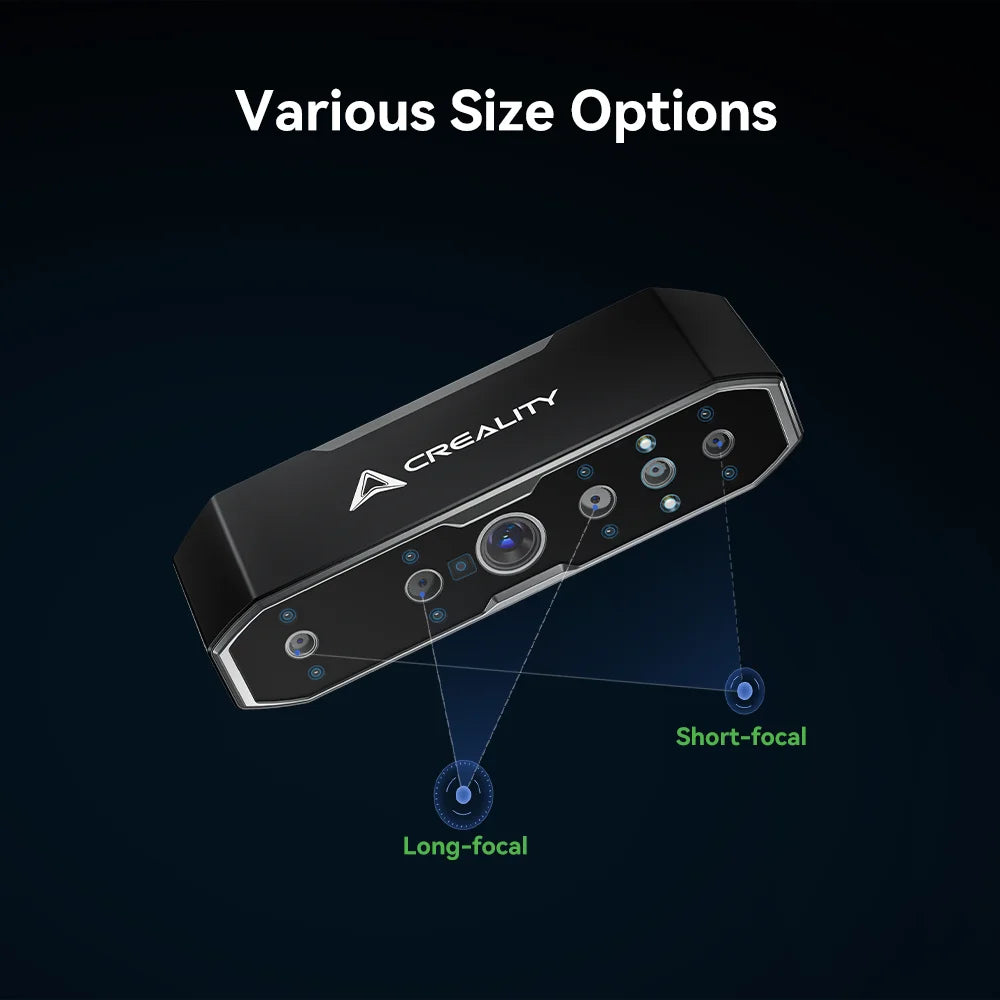

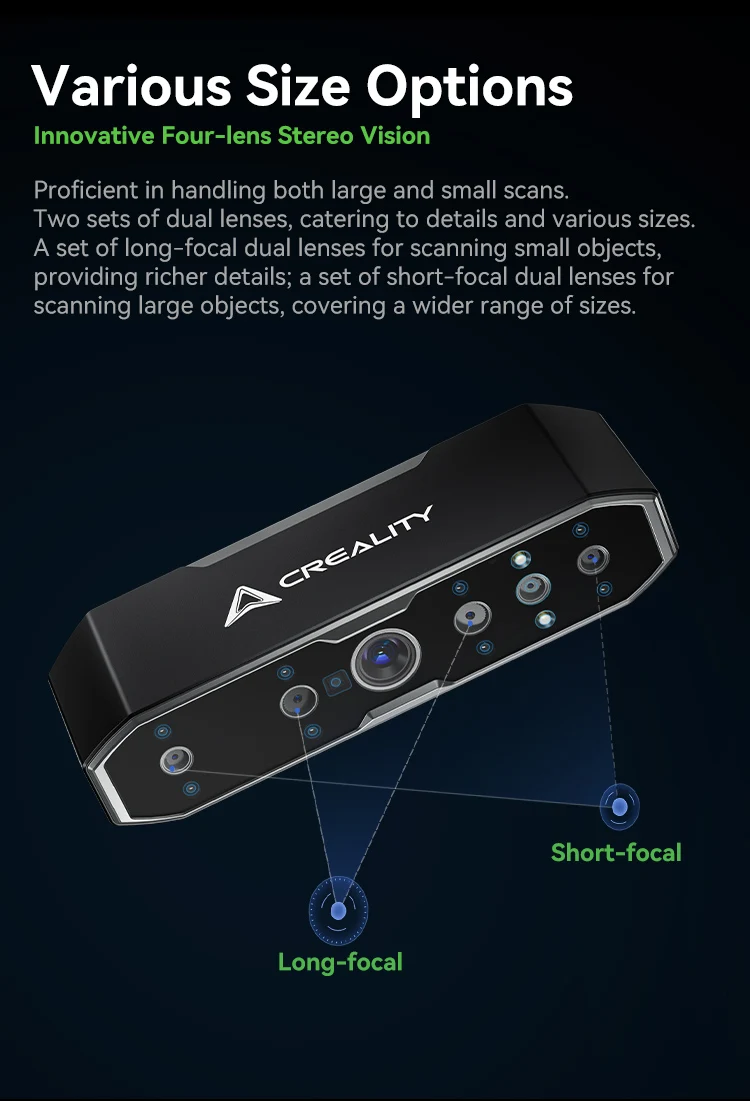

Various Size Options
Innovative Four-lens Stereo Vision
Proficient in handling both large and small scans.
Two sets of dual lenses, catering to details and various sizes.
A set of long-focal dual lenses for scanning small objects,
providing richer details; a set of short-focal dual lenses for scanning large objects, covering a wider range of sizes.
Capture SMALL & BIG Objects
The CR-Scan Otter realizes possibilities of scanning various objects, ranging in size from 10*10*10mm³to 2000*2000*2000mm³, from tiny coins to large vehicles, all covered in one scanner.The scanning distances range from 110mm to1200mm to effectively capture items of versatile sizes.
Ultra-High Precision, Rich in Detail
Otter adopts the state-of-the-art structure-light stereo-matching algorithm and optical design to faithfully reproduce the authentic texture and contours of objects.
The scanning accuracy up to 0.02mm ensures every detail is sharp and clear.

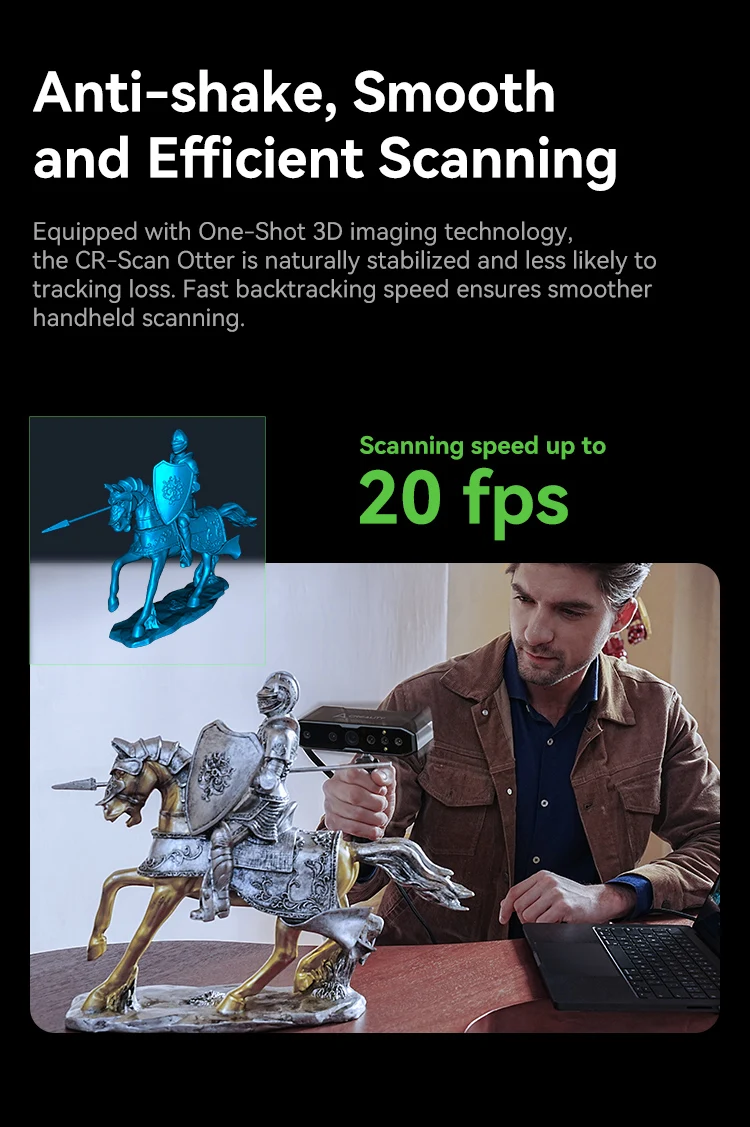

Anti-shake,Smooth and Efficient Scanning
Equipped with One-Shot3D imaging technology,the CR-Scan Otter is naturally stab lized and less likely to tracking loss. Fast backtracking speed ensures smoother handheld scanning.

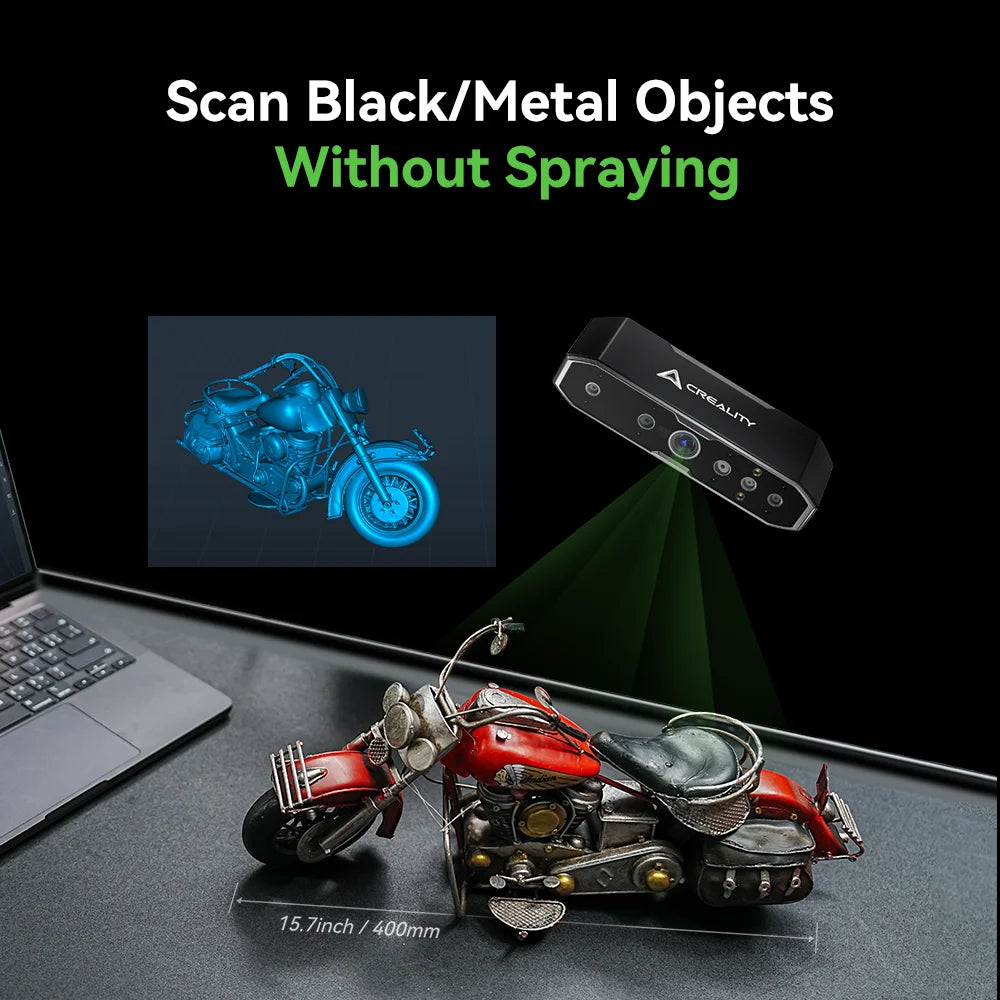

Scan Black/Metal Objects Without Spraying
Even without scanning spray, you can scan cars, car parts, tires,and other black/metal objects to get the desired model effect.
Unique Face & Body Algorithm with Eye Safety
Outdoor Scanning
Engineered with advanced DOE (Diffractive Optical Element)
3D structure-light technology, CR-Scan Otter has higher environmental adaptability

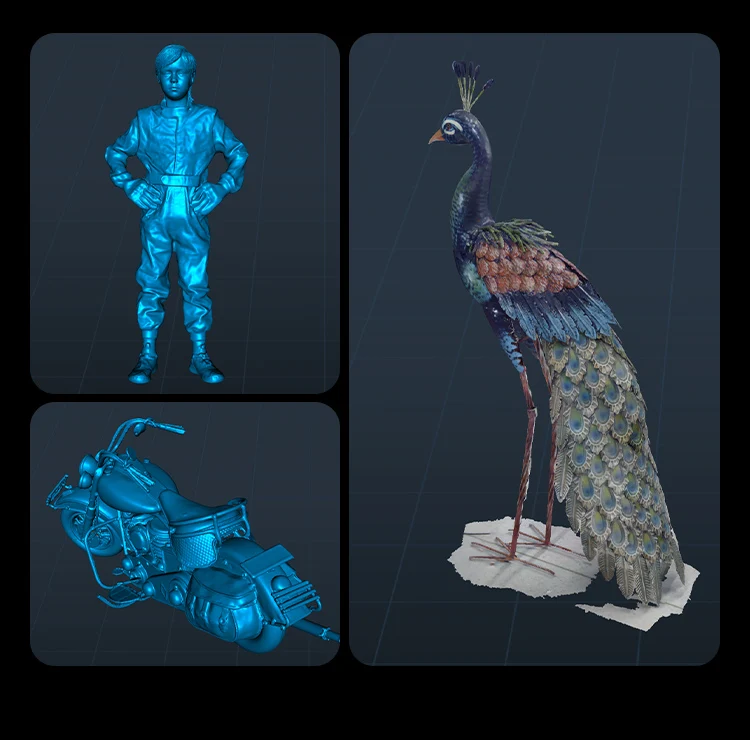

Full-Color Scanning, True-to-Life Reproduction
Clear Capture with Built-in Lights:
Even in low-light environments this allows for the most realistic texture effects.Two supplemental LEDs help precisely captureClear Capture details, faithfully reproducing the color andwith Built-in Lights texture of objects.

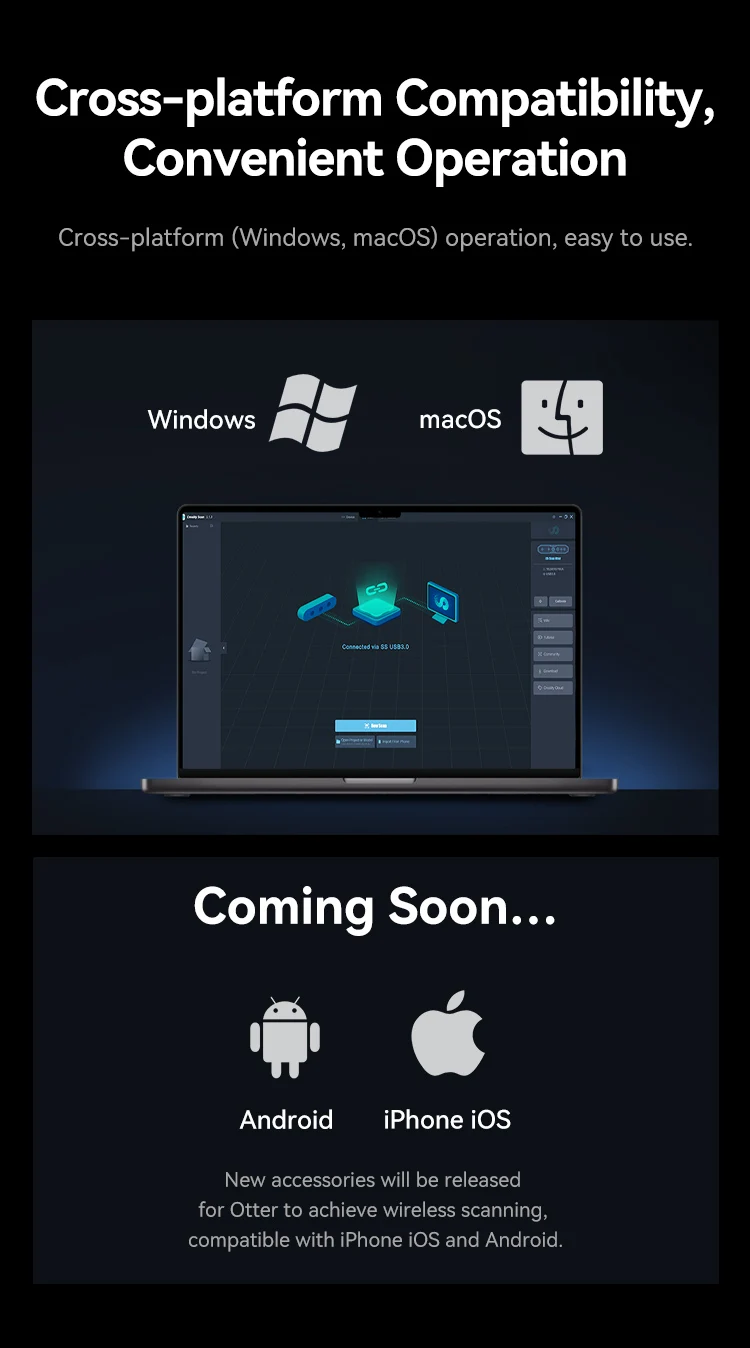

Cross-platform Compatibility,Convenient Operation
Cross-platform(Windows, macOS) operation, easy to use.

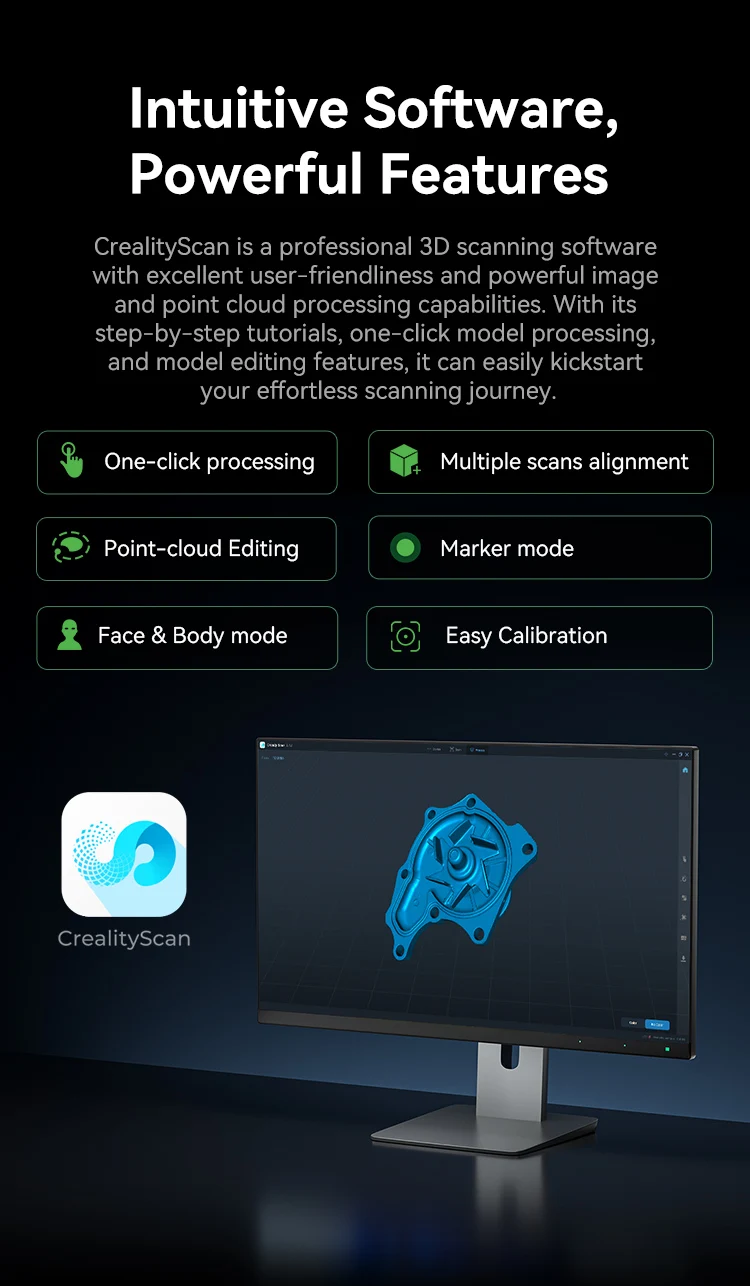

Intuitive Software, Powerful Features
Creality Scan is a professional 3D scanning software with excellent user-friendliness and powerful image and point cloud processing cap abl ities. With its step-by-step tutorials, one-click model processing,and model editing features, it can easily kickstart your effortless scanning journey.

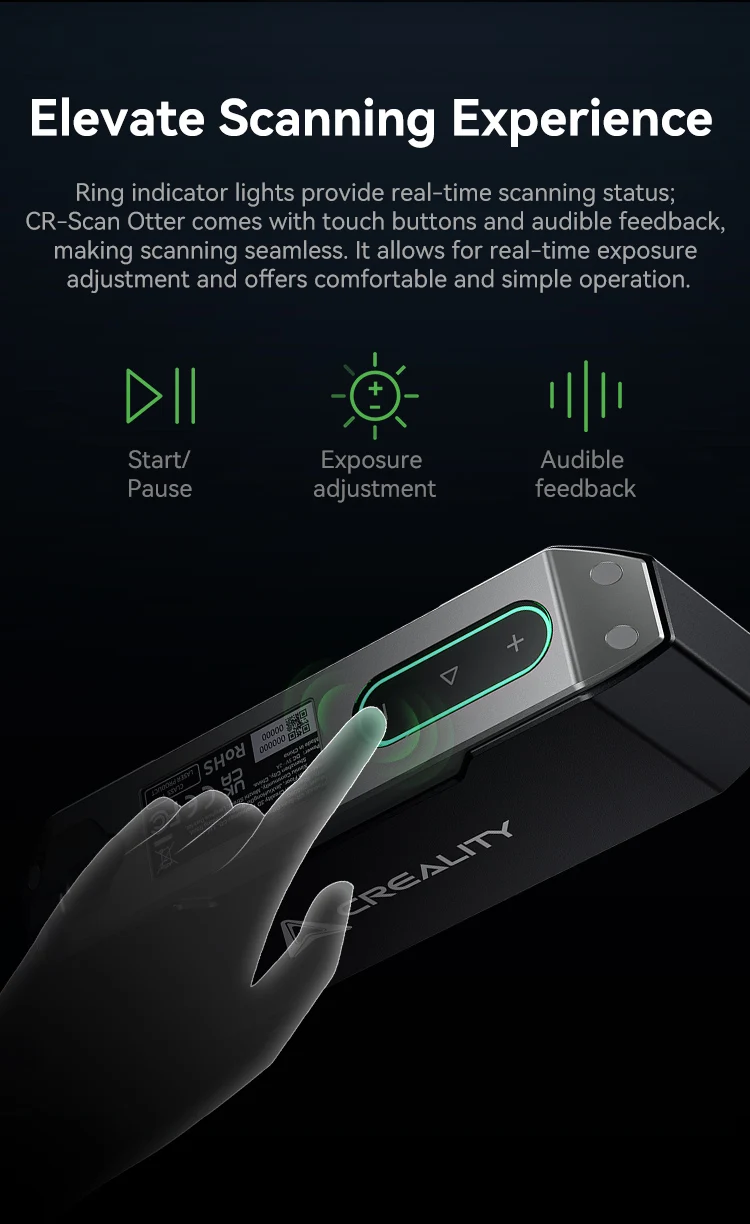

Elevate Scanning Experience
Ring indicator lights provide real-time scanning status;CR-Scan Otter comes with touch buttons and audible feedback, making scanning seamless.It allows for real-time exposure adjustment and offers comfortable and simple operation.
Support Marker Scanning
With 8 infrared lights, it better tracks marker points, applicable to objects with fewer scanning features. Under marker mode,it will achieve higher accuracy.

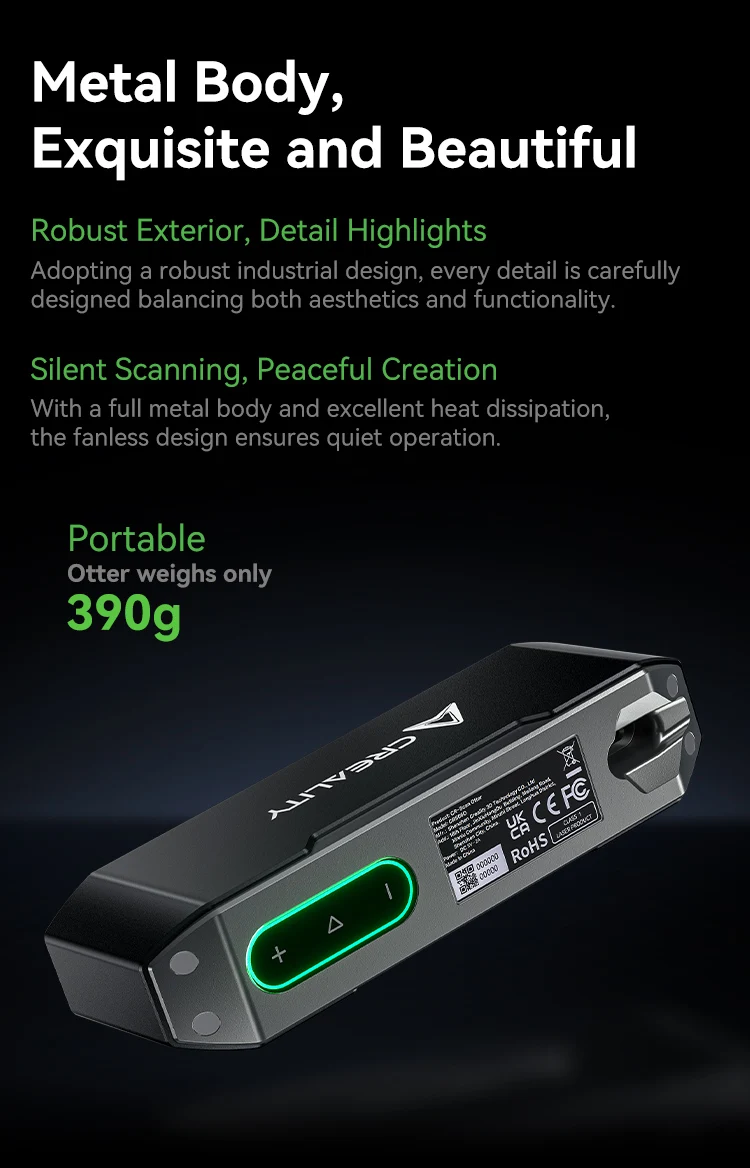

Metal Body,Exquisite and Beautiful
Robust Exterior, Detail Highlights
Adopting a robust industrial design, every detail is carefully designed balancing both aesthetics and functionality.
Silent Scanning, Peaceful Creation
With a fullmetal body and excellent heat dissipation,the fanless design ensures quiet operation.

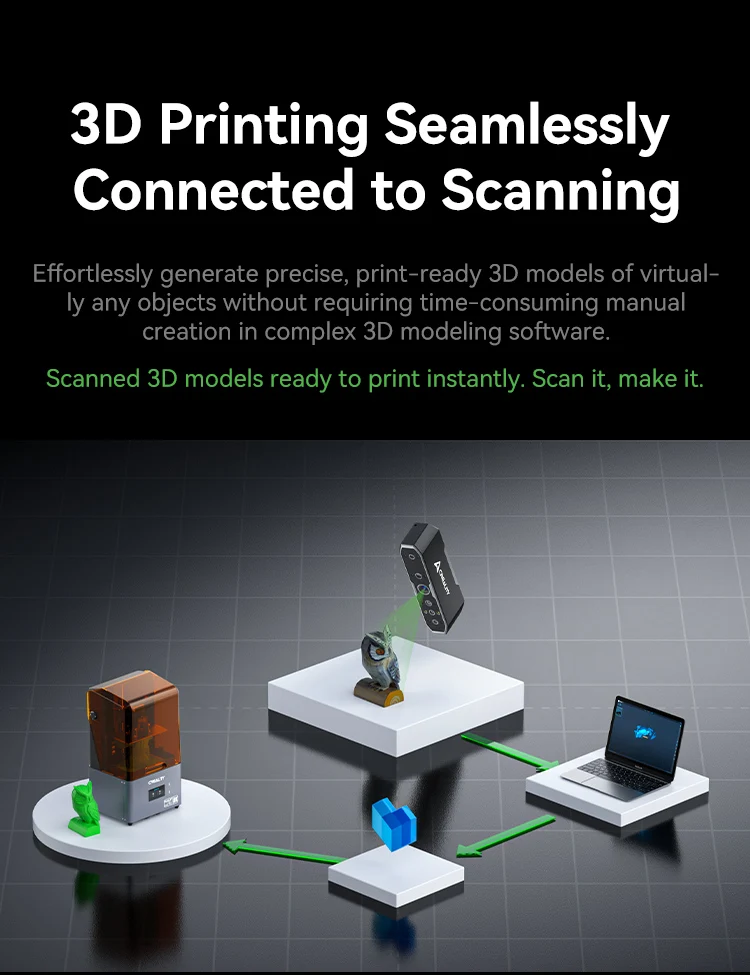

3D Printing Connected to Scanning
Effortlessly generate precise, print-ready 3D models of virtually any objects without requiring time-consuming manual creation in complex 3D modeling software.
Scanned 3D models ready to print instantly.Scan it, make it.
