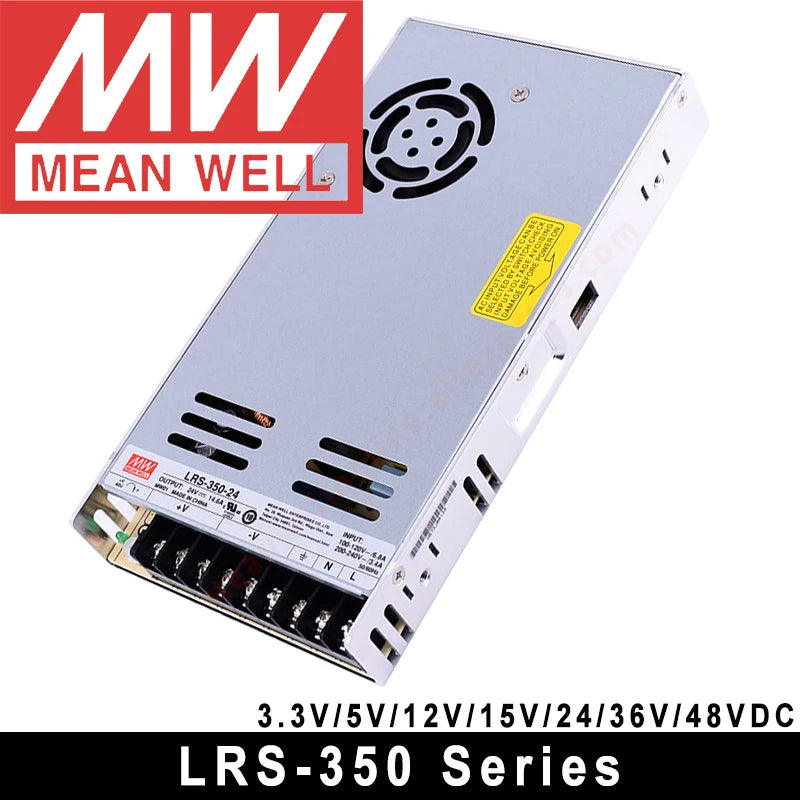

Mean Well 5V 12V 15V 24V 36V 48V Meanwell LRS-50/75/100/150/200/350/450/600 Series Single Output Switching Power Supply

Features
1)AC input range selectable by switch(150W-350W)
2)Withstand 300VAC surge input for 5 second
3)Protections: Short circuit/ Overload/ Over voltage/Over temperature
4)Forced air cooling by built-in DC fan
5)Built-in cooling Fan ON-OFF control
6)1U low profile
7)Withstand 5G vibration test
8)LED indicator for power on " No load power consumption<0.75W
9)100% full load burn-in test
10)High operating temperature up to 70°C
11)Operating altitude up to 5000 meters (Note.8)
12)High eficiency, long lifte and high relability
13)3 years warranty

Applications
1)Industrial automation machinery
2)Industrial control system
3)Mechanical and electrical equipment
4)Electronic instruments, equipments or apparatus

Description
LRS series is a single-output enclosed type power supply with low profile design. LRS-150, LRS-200, LRS-350 Adoting the input of 115VAC or 230VAC (select by switch), RS-15, RS-25, RS-35, LRS-50, LRS-75, LRS-100 Adoting the Full range 85-264VAC Input, the entire series provides an output voltage line of 3.3V, 4.2V, 5V, 12V, 15V, 24V, 36V and 48V.
In addition to the high fficiency up to 89%, with the bult-in long lite fan LRS can work under -25~+70C with full load. Delivering an extremely low no load power consumption (less than 0.75W), it allows the end system to easily meet the worldwide energy . LRS has the complete protection functions and 5G anti-vibration capability; it is complied with the international satety regulations such as L60950-1. LRS series serves as a high price-to-performance power supply solution for various industrial applications.
